FEATURES
  • Compact design for space saving.
  • High quality cylinders and valves for trouble free operation.
  • Machine maintenance, testing and production have manual and auto mode.
  • Genuine parts are used to enhance machine life.
  • Philips 16 bit XAG – 49 micro processor.
  • Separate pressure adjustable valves are given for high pressure.
  • Low pressure system pressure.
  • One operator one machine.
  • Inbuilt cooling system for neck cooling, mould cooling.
  • One conveyor can be used for two blowing machines.
Model :

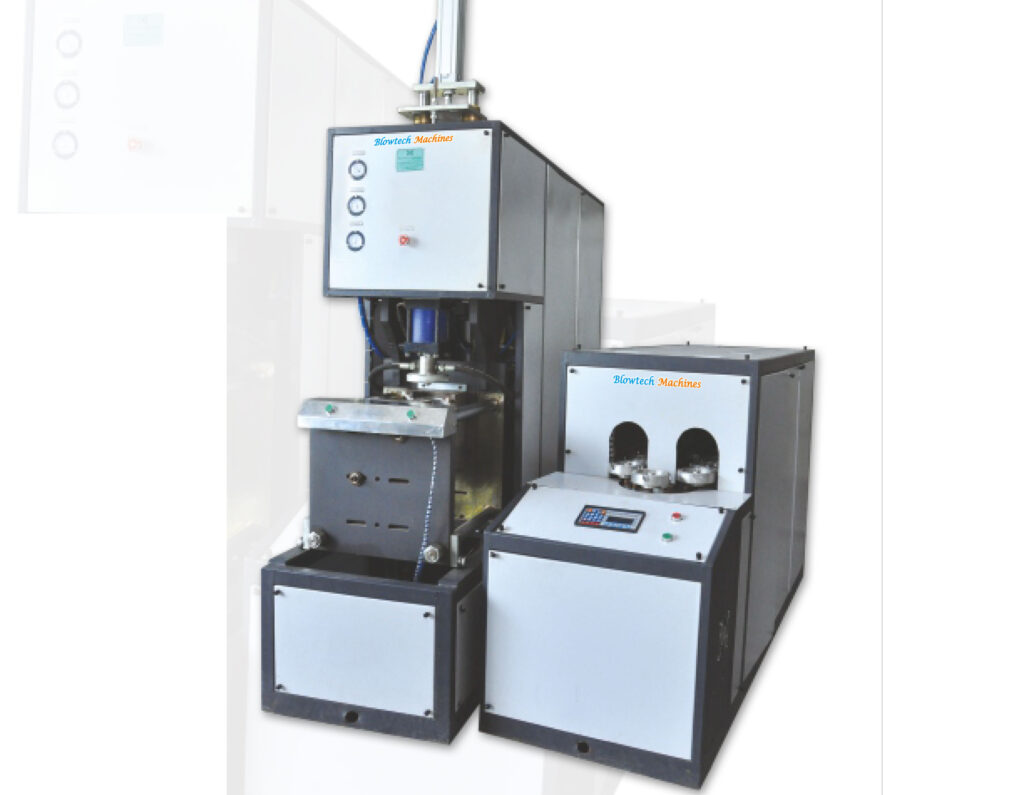

Model : BM SA 2000 BJ Regular (2 Cavity + 1 Cavity).
Specifications Unit Datasheet
Forming Cavity Pitch mm 150
Mould WIDTH THICKNESS mm 160 max 200 max
Clamping Stroke mm 150 max
Stretching Stroke mm 400 max
No. of Cavity pcs Two / Single
Product Product Height mm 350 max
Container Volume ml 30ml min 2000ml max
Neck Outer Diameter (Max) mm 25 – 83
Product Outer Diameter (Max) mm 130
Theoretical Production pcs/hr 800/1000 bph 400-500 jars/hr
Power Total Consumption Power kw 10 KW
Heating Power kw 8 kw / Phase
GEAR Motor Conveyor Motor + Blower kw 2.0
Number of Lamp pcs 7
Air Operation Pressure kg/cm 7
Blowing Pressure kg/cm 30
